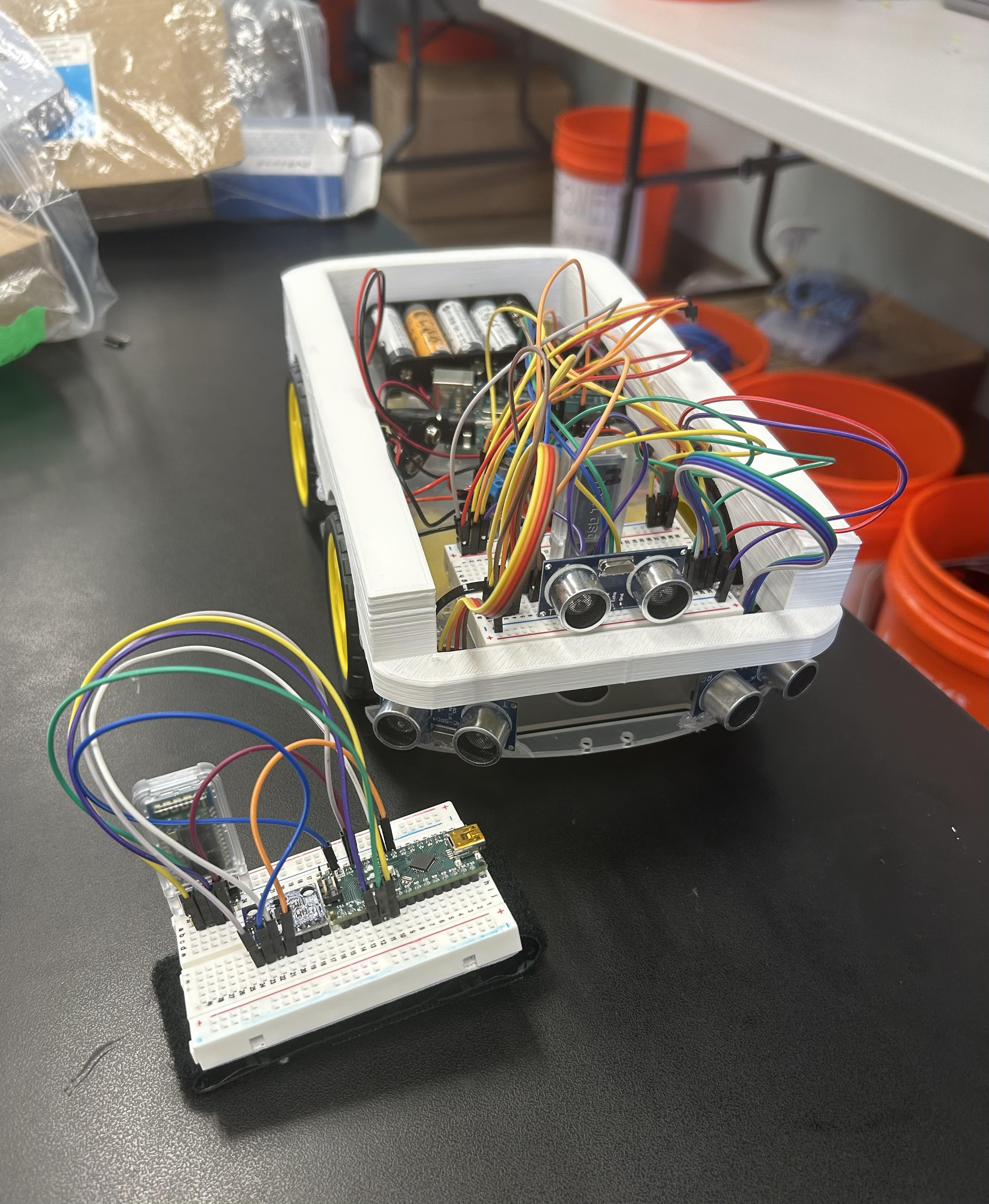

Gesture Controlled Robot

The Gesture Controlled Robot is operated from a gauntlet device someone can wear on their wrist. By tilting or rotating the wrist, users can move the robot in all sorts of directions.

Engineer	School	Area of Interest	Grade
Jerry G	Lynbrook High School	Mechanical Engineering	Incoming Sophomore

Jerry G’s Final BlueStamp Project

Challenges and Triumphs at Bluestamp

My biggest challenge at Bluestamp was learning how to code with little to no previous experience. Although I have taken some python and C++ courses before, coding with an Arduino is a completely different thing. I definitely had to search up many tutorials on specific functions and how they work. It also took me a while with the electrical components of the project. Breadboards were confusing to me at first as well as voltage dividers, but I grew to understand how they worked.

My biggest triumph at Bluestamp is the increase of confidence in my ability to build a project using accessible materials you can easily find online. Being able to bring together code, hardware, and logic to make something that actually moves and responds to input felt very rewarding. I learned to troubleshoot problems on my own and adapt when things didn’t go as planned, which gave me a sense of independence I didn’t have before. Now, I feel much more capable of tackling future projects, even ones that seem out of reach at first.

Key Topics learned at Bluestamp

• Breadboard Usage
• Coding using Arduino IDE
• Voltage Dividers
• AT Commands with Bluetooth Modules
• Some pins on an Arduino have to be empty during the uploading of code
• Importance of syntax in C++ (or any coding language)
• Accelerometer Data (acceleration, rotational acceleration, Roll, Pitch, and Yaw)
• Using the Serial Monitor
• Power Distribution
• Arduino Usage (Uno & Nano)
• Designing using Fusion 360 & Onshape
• Ohm’s Law
• Soldering
• 3D Print

Components and How They Work

Arduino Uno & Nano

The Uno is a full-sized board with a standard USB port, while the Nano is a compact, breadboard-friendly version. Both boards can read sensor inputs and control outputs like motors, LEDs, etc. They are programmed using the Arduino IDE through USB and support communication with a wide range of external components.

HC05 Bluetooth Module

The HC-05 is a Bluetooth module that allows wireless communication between devices. It can be used to send and receive data between your robot and a phone, computer, or another microcontroller. With a built-in transceiver, the module uses serial communication (TX/RX) to transmit data over short distances. By pairing it with your device/another module, you can control or monitor your robot wirelessly in real time.

Steps to Pair 2 HC05 Bluetooth Modules

1. Label 1 module as the slave and the other as the master.
2. Connect and upload blank code into your Arduino
3. Unplug power source and grab slave HC05 module
4. Connect pins in the following way: RX->RX, TX->TX, GND->GND, 5V->5V, EN->3.3V
5. We need to get into AT Command mode: Hold down the reset button on the Slave HC05 while plugging in the power source into the Arduino (You should now see long, slow blinks on your HC05)
6. Enter the Serial Monitor in your Arduino IDE
7. Make sure Baud Rate is “38400 baud” and “Both NL & CR” are selected
8. Type AT twice into the serial monitor (you should get an error the first time and you should get an “OK” the second time)
9. Type in “AT+ROLE?” into the serial monitor (if returns 0, it is the slave, if returns 1, it is the master)
10. Type in “AT+ADDR?” to get the address of the Slave, Copy the string of numbers, letters, colons after “+ADDR:” onto a separate notepad/document BUT REPLACE COLONS WITH COMMAS
11. Unplug Slave module from Arduino and use the same wiring configuration for Master module
12. Unplug power source and repeat Step 5 to get into AT command mode for the Master module
13. By default, when you type in “AT+ROLE?” into the serial monitor, it should return a “0” meaning that it is still a slave. Type in “AT+ROLE=1” to set the module as Master (Type in AT+ROLE? to make sure it has been set as master)
14. Type in “AT+CMODE=0” so the module knows to only connect to one other module in the vicinity
15. Copy the address of the Slave, which you have saved in Step 10. Type in “AT+BIND=[address]”. (AT+BIND=? should return the address after you have completed this step)
16. Grab a spare Arduino to connect to the Slave Module
17. Do the same wiring configuration for the slave module again (found in Step 4). However, we have to make a few changes to the wiring. For both slave and master modules, instead of RX->RX & TX->TX, connect RX->TX & TX->RX. Also, disconnect the EN->3.3V, we won’t be needing this anymore.
18. If you have done the previous steps correctly, you should see the two modules blinking simultaneously which means the two modules are now paired (denoted by 2 quick blinks at a time)

L298N Motor Driver

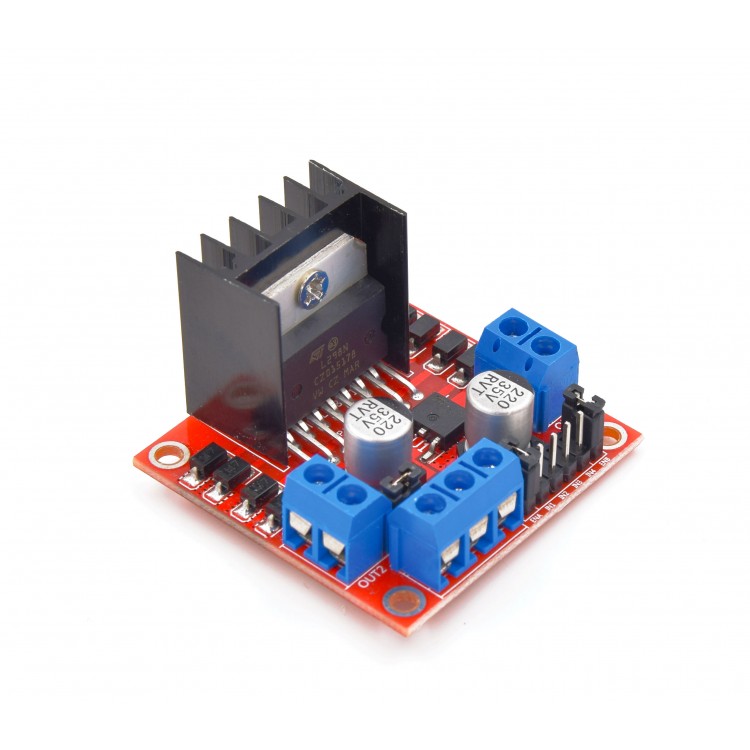

The L298N Motor Driver controls the direction and speed of DC motors by switching the polarity of the voltage sent to the motor terminals. It uses an internal circuit called an H-Bridge, which allows it to reverse the current flow. When one output pin is set HIGH and the other is LOW, current flows in one direction, making the motor spin forward. Swapping the pins (making the first LOW and the second HIGH) reverses the current flow, which flips the voltage polarity and makes the motor spin in the opposite direction.

MPU-6050

The MPU6050 is a compact sensor module that combines a 3-axis gyroscope and a 3-axis accelerometer to measure motion and orientation. It communicates with microcontrollers using the I2C protocol, allowing projects to detect tilt, acceleration, and rotational speed. By reading changes in acceleration and angular velocity, the sensor helps track how a device is moving through space.

Ultrasonic Sensor

An Ultrasonic sensor has two eye-like sensors. The Transmitter sends high frequency sound waves and these sound waves reflect back towards the Receiver. The sensor calculates distance using the speed of sound and the time it takes for the sound waves to come back. Using simple Distance = Speed * Time mathematics, you can get the distance in whatever units you would like with conversions.

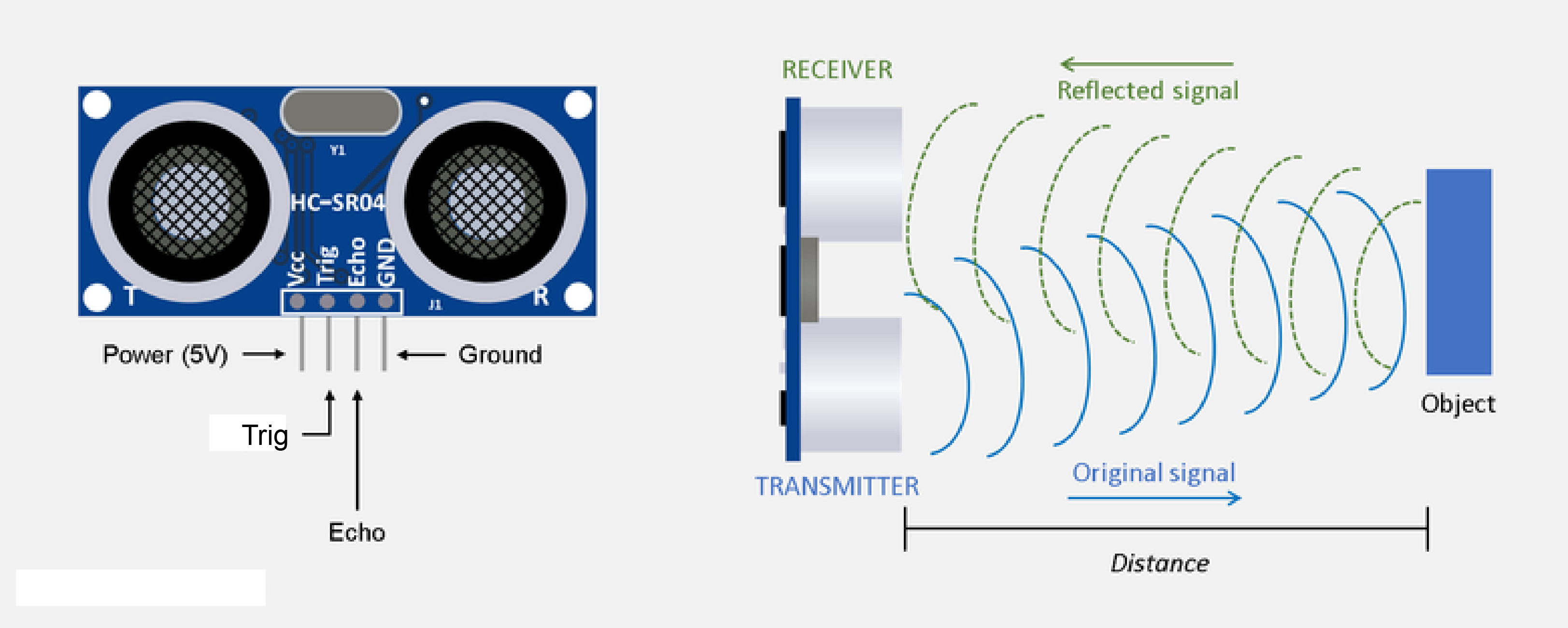

Figure 1: Diagram Explaining How Ultrasonic Sensor works

Post-Demo Night Modification 7/24/25

After Demo Night, I made one final modification: I added a buzzer to warn the driver when the car is about to crash. If the car is close to an obstacle and the driver’s hand is still positioned to move forward, the buzzer will sound, telling the driver to either back up or to stop trying to go forward. I also adjusted the distance conditions for the robot to stop, adding a few inches to each parameter.

Modification Milestone

Summary of Modification Milestone

For my Modification Milestone, I added a crash-prevention mechanism to the front of my car. I accomplished this through the use of 3 ultrasonic sensors, each of them angled slightly different which allows for more field of vision. Aside from different angling, I also placed the two sensors on the sides a bit lower to make sure no obstacles are missed. I programmed the robot to stop if the center sensor detects an object within 11 inches, or if either of the side sensors detects an object within 6 inches. To ensure the ultrasonic sensors don’t bug out or produce faulty readings, which could interfere with the robot’s movement, I wrote code to take the average of the previous five distance readings. I also 3d-printed a frame around the components on top of the robot, helping to keep them organized and out of view.

Challenges

At first, I only planned on adding one ultrasonic sensor on the front of the robot but it wans’t able to detect objects that weren’t in view (objects a bit to the side) and it often crashed. To solve this, I just hot-glued two more ultrasonic sensors to the side. However, the sensors would sometimes produce inaccurate values that would cause the robot to stop suddenly when it shouldn’t. I fixed this by taking the average of the previous 5 distance readings so the faulty values would be averaged out.

3D Printed Items

I 3D Printed two parts, a frame for the front of the robot and one for the back. I decided to do two separate items for two reasons. First, it would be easier and faster to 3D Print. Second, in case I measured something incorrectly, I could adjust them around to make sure they fit well. If I only had one part, and it didn’t fit perfectly, then I would have to change measurements and 3D Print again. Below are the two parts I printed out:

Front Frame

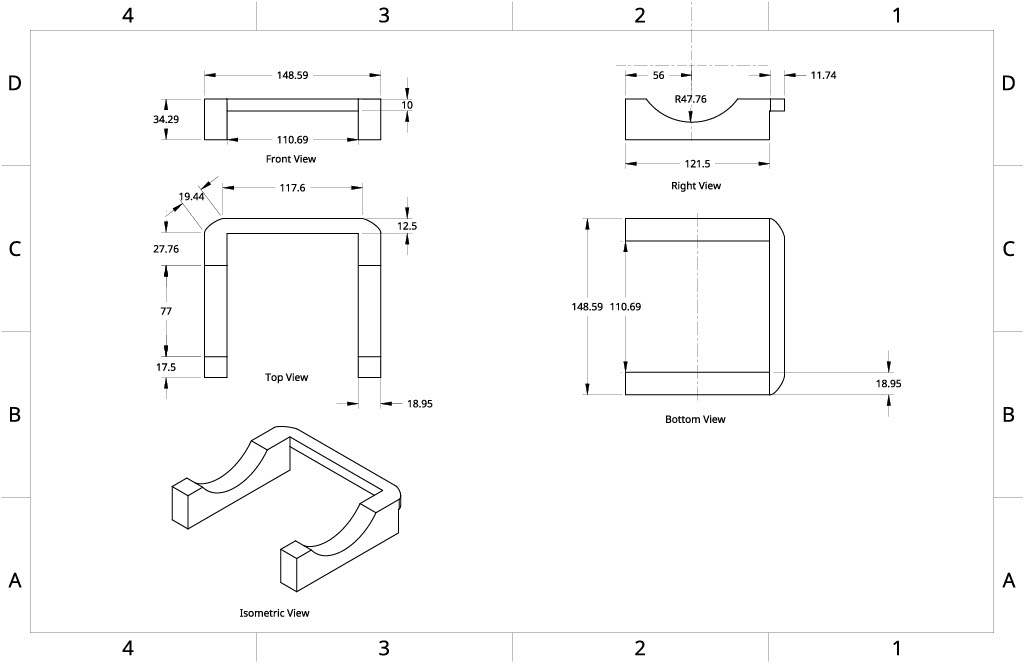

Figure 2: Drawing of Front Frame

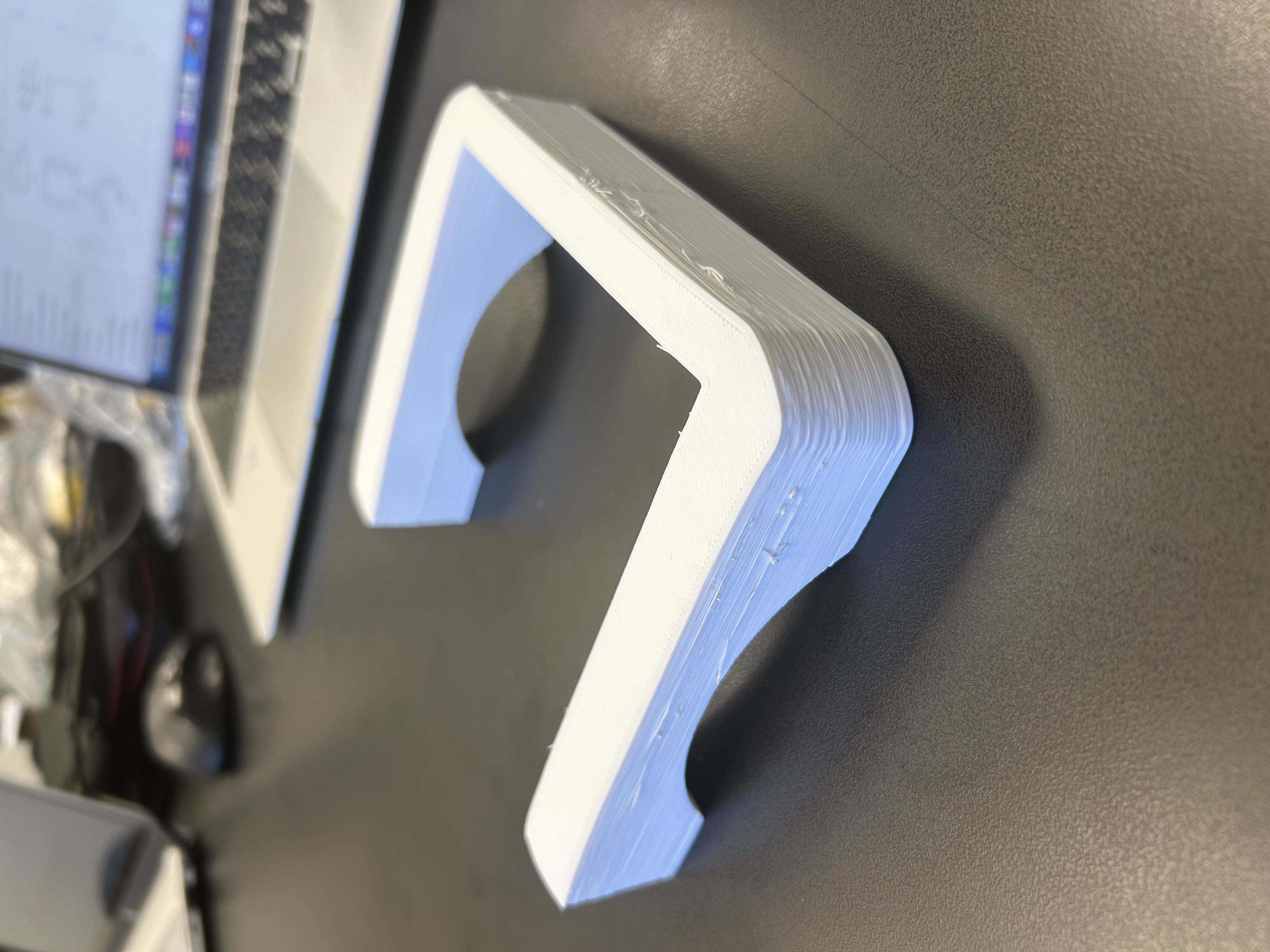

Figure 3: Picture of Front Frame

Back Frame

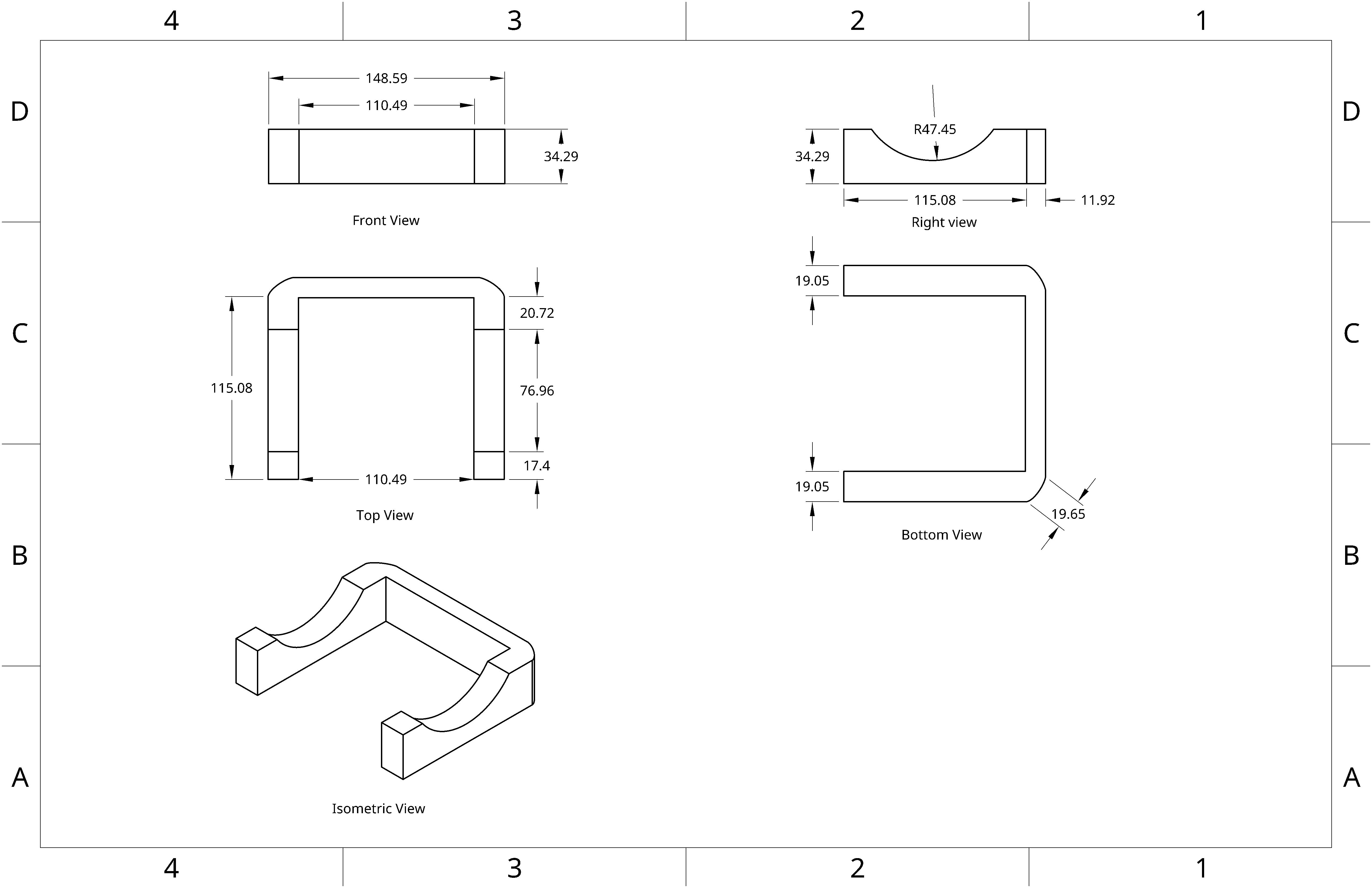

Figure 4: Drawing of Back Frame

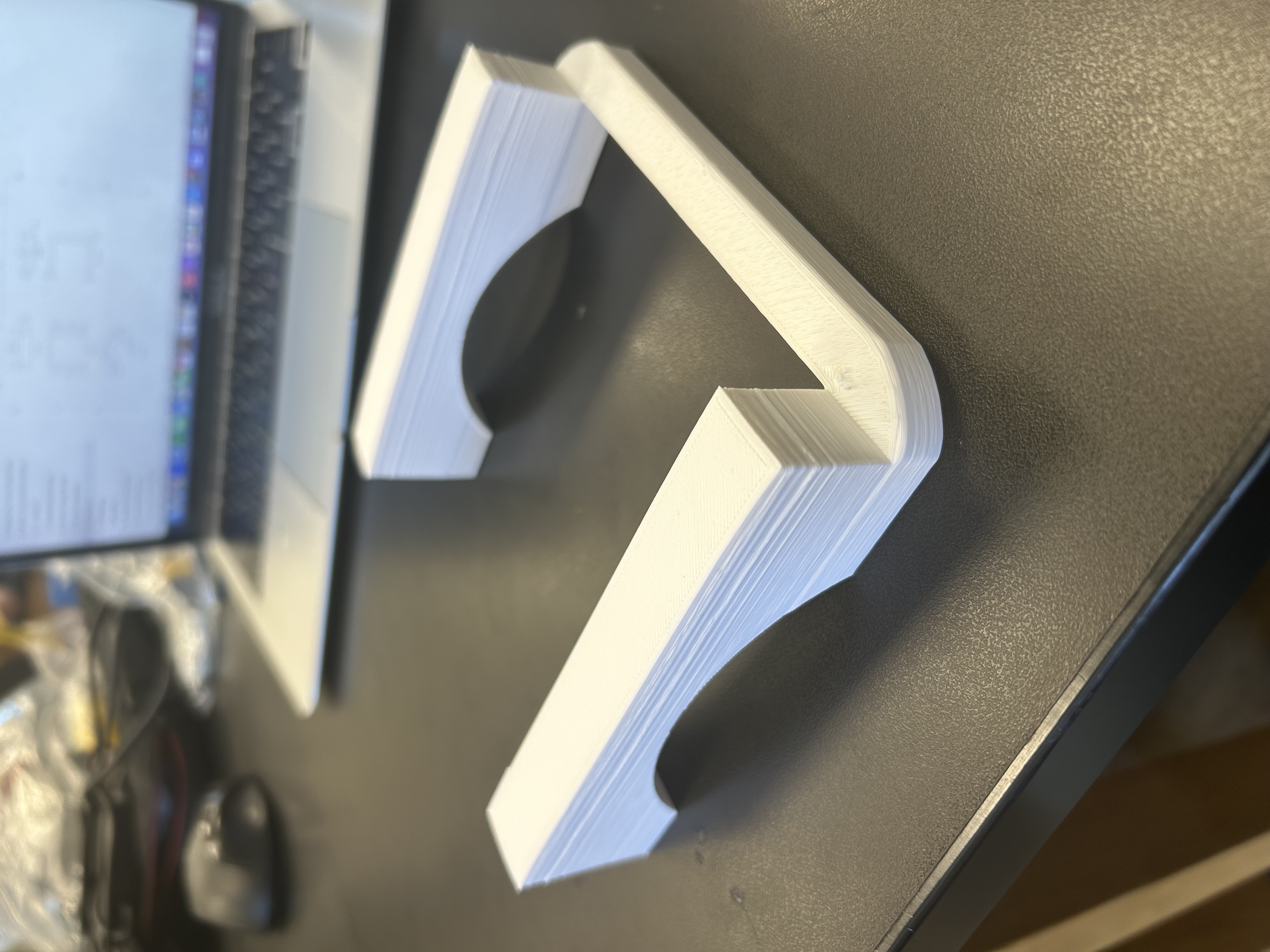

Figure 5: Picture of Back Frame

Final Milestone

Summary of Milestone 3

For my final milestone, the goal was to translate accelerometer data into movements of the robotic car. However, before I could begin working on that, I had to make a few quick modifications. First, instead of using two L298N motor drivers, I realized that one was sufficient, since I could connect both motors to the same driver using the motor output blocks (OUT1–OUT4). The second change involved the power supply. Previously, I was using a single 9V battery to power the Arduino Uno, and that power was also passed on to the motors through the driver. Now, I’ve separated the power sources: one 9V battery powers the Uno, and a separate battery pack with four 1.5V batteries powers the motors directly.

To enable the car to move based on accelerometer data, I first wrote movement functions (forward, backward, left, and right). Then, I used if statements that checked the values of acX and acY from the accelerometer to trigger these movements. Through this process, I also learned that I didn’t need the other four variables (acceleration in the Z-axis and rotational acceleration in all three axes), as they were not relevant to my controls.

Next Steps (Modification and After Bluestamp)

For my modification, I plan on making a few key upgrades. First, I want to attach an ultrasonic sensor to the front of the car to help it detect obstacles and prevent collisions. Next, I hope to design a frame or come up with a solution to keep all the components on top of the car sturdy, organized, and secure. Finally, I want to improve how the car turns. Rather than stopping before changing direction, I’d like it to be able to turn while moving forward or backward, making its movement feel more natural and realistic.

Using the skills I have learned at Bluestamp, I plan on joining the Robotics team for the next school year. I joined during my Freshman year, but I wasn’t very active because of lack of skill and time constraints. Bluestamp provided me with a foundation, and I feel confident that the things I learned this summer can help me help the robotics team.

Second Milestone

Summary

My second milestone focused mainly on the Bluetooth communication aspect of the project. The first step was to connect and pair two HC-05 Bluetooth modules. These modules enable wireless communication between the Bluetooth gauntlet and the robotic car by transmitting data over a short range. To accomplish this, I followed several online tutorials that guided me through entering AT Mode and changing the settings to configure one HC-05 as the Master and the other as the Slave. The MPU6050 accelerometer is a sensor that measures acceleration forces in three directions (x, y, and z axes), as well as rotational acceleration, which provides information about the motion and orientation of the glove. Using the accelerometer, I successfully obtained data outputs showing movement in all three axes. After this, the next step was to send the raw data from the Arduino Nano to the Arduino Uno via the bluetooth modules, which I was also able to accomplish.

Challenges

One significant challenge I faced was figuring out how to use a voltage divider to protect the HC-05 modules, since the Arduino Nano operates at 5V logic while the HC-05 requires 3.3V signals. I spent several hours trying to set up the voltage divider correctly, but eventually realized I could use an accelerometer without needing the voltage divider. The most tedious part of this milestone was sending the accelerometer data wirelessly from the Arduino Nano to the Arduino Uno. I had to write a lot of code and debug it everytime it failed.

Next Steps

For my final milestone, my goal is to turn the raw data from the accelerometer into commands for the car to move.

Figure 6: Overhead Picture of Completed Milestone 2

First Milestone

Summary

For my first milestone, I focused on building the hardware section of the robot. I assembled the chassis and attached all four DC motors, soldering wires onto each motor to ensure a secure connection. The motors were firmly locked into place on the chassis to prevent any movement during operation. The key components I used included four DC motors, two L298 motor driver modules, an Arduino Uno R3, a breadboard, and the chassis itself. The motor drivers act as controllers between the Arduino and the motors, receiving commands such as HIGH or LOW to control whether the motors spin or stop. The Arduino serves as the main controller, processing these commands and sending signals to the motor drivers. I wired everything together using a breadboard to connect the pins and components without having to solder. After writing and uploading simple test code to the Arduino, I powered the system with a 9V battery connected using a barrel jack wire, and all four motors successfully spun as expected.

Challenges

While the assembly mostly went smoothly, I faced some challenges. At first, I forgot to solder wires to the motors before attaching the top of the chassis, which required me to unscrew and disassemble part of the robot to fix it. I do have some concerns as of now. The motor drivers, breadboard, and Arduino are loosely placed on top of the chassis, with many wires hanging loosely, making the setup messy. I plan to tidy up the wiring with zip ties once I confirm the final component layout.

Next Steps

Next, I plan to move on to milestone two, which involves building the Bluetooth gauntlet that will be worn to control the robot wirelessly. This will include integrating Bluetooth modules and wiring the glove for communication with the robot.

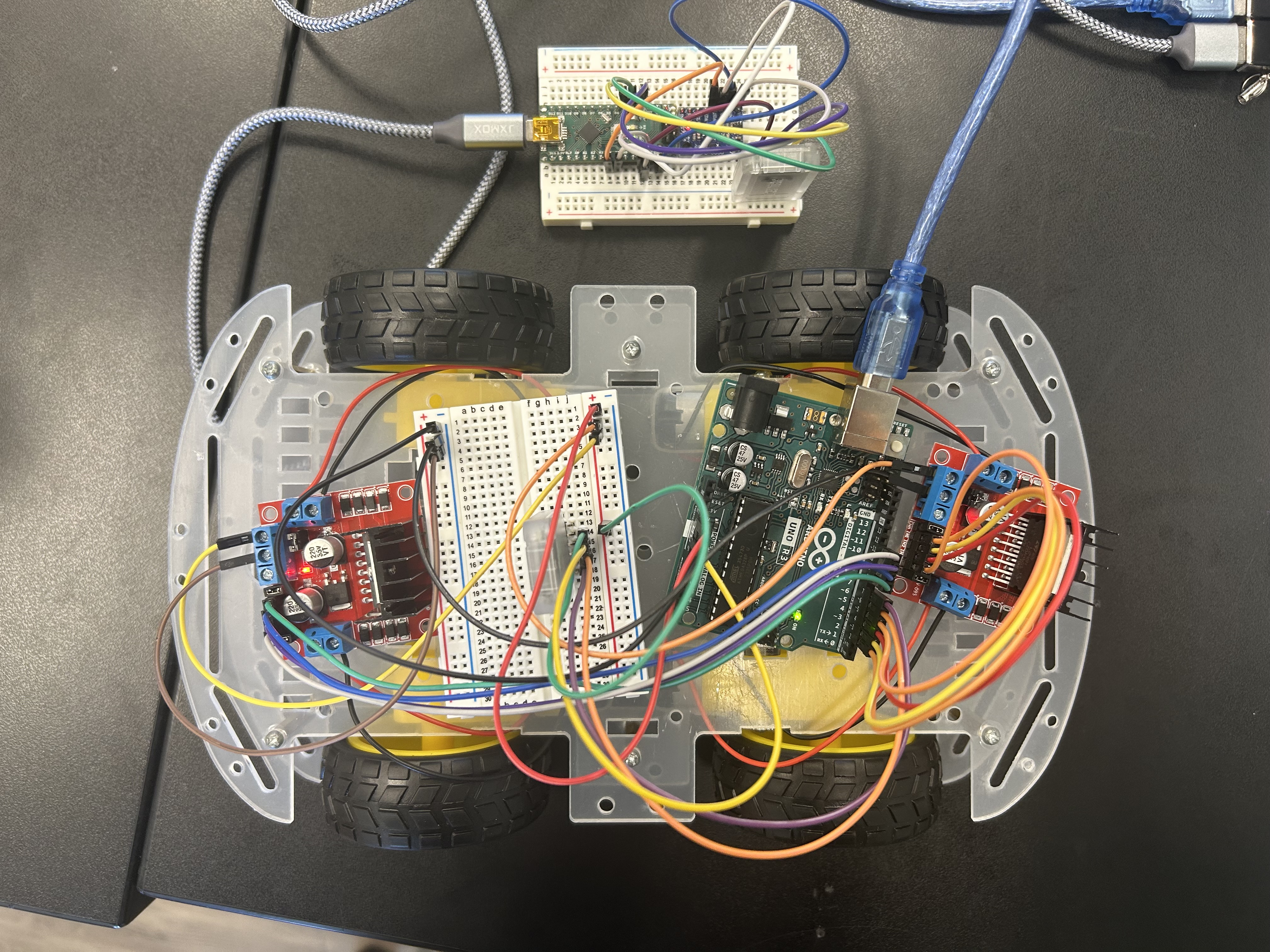

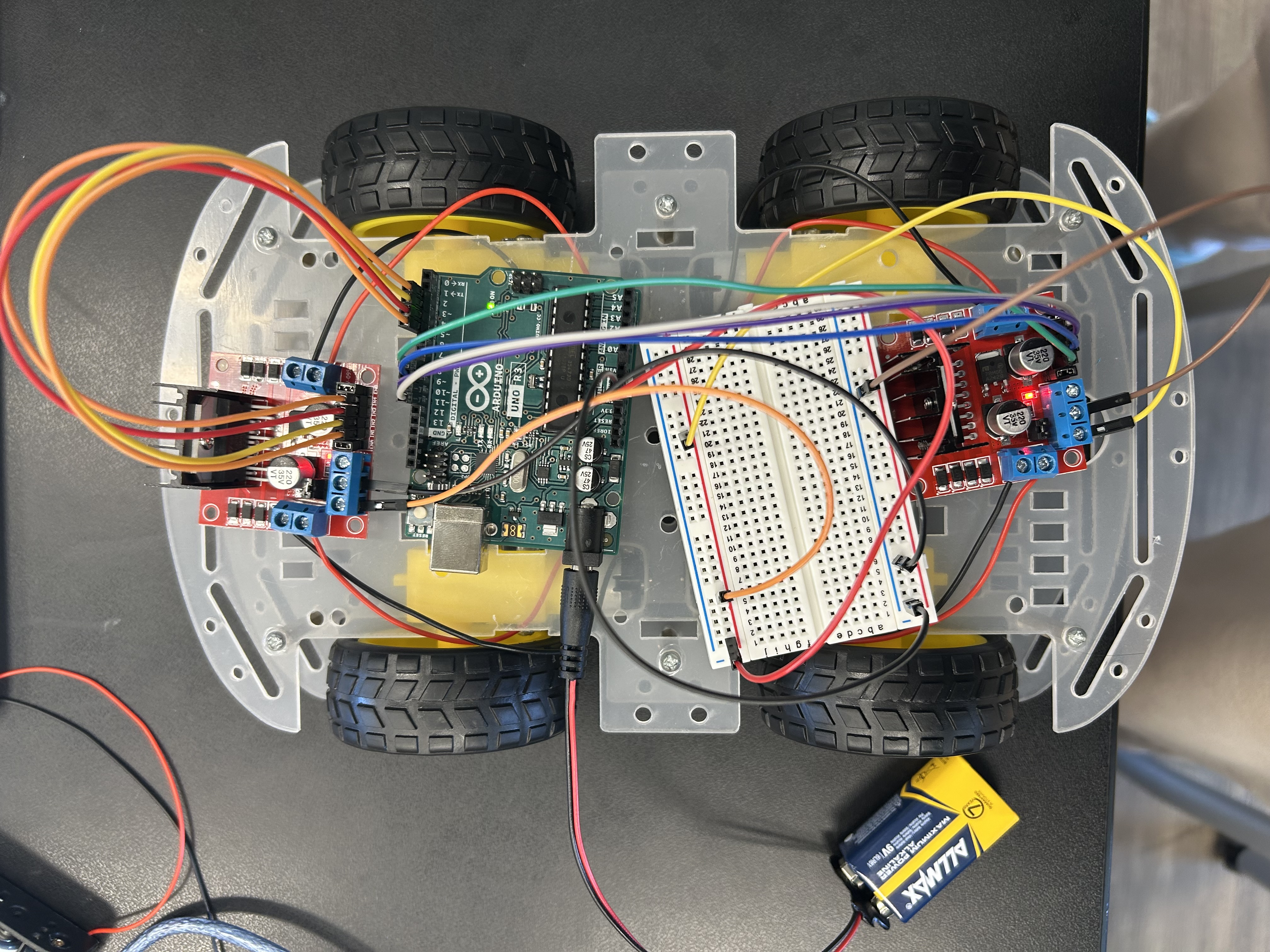

Figure 7: Overhead Picture of Completed Milestone 1

Schematics

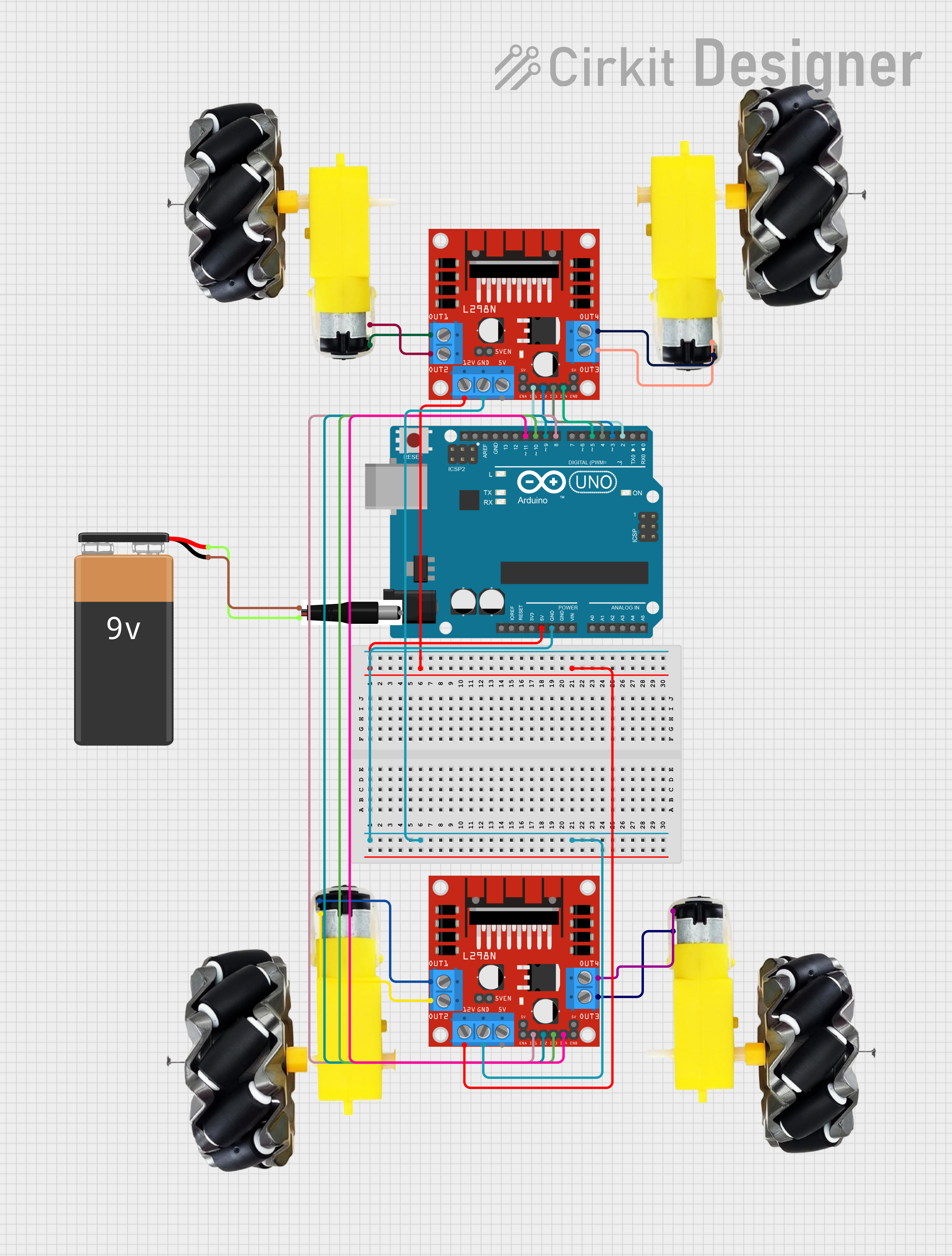

Figure 8: Schematic of Milestone 1 including L298N Motor Drivers

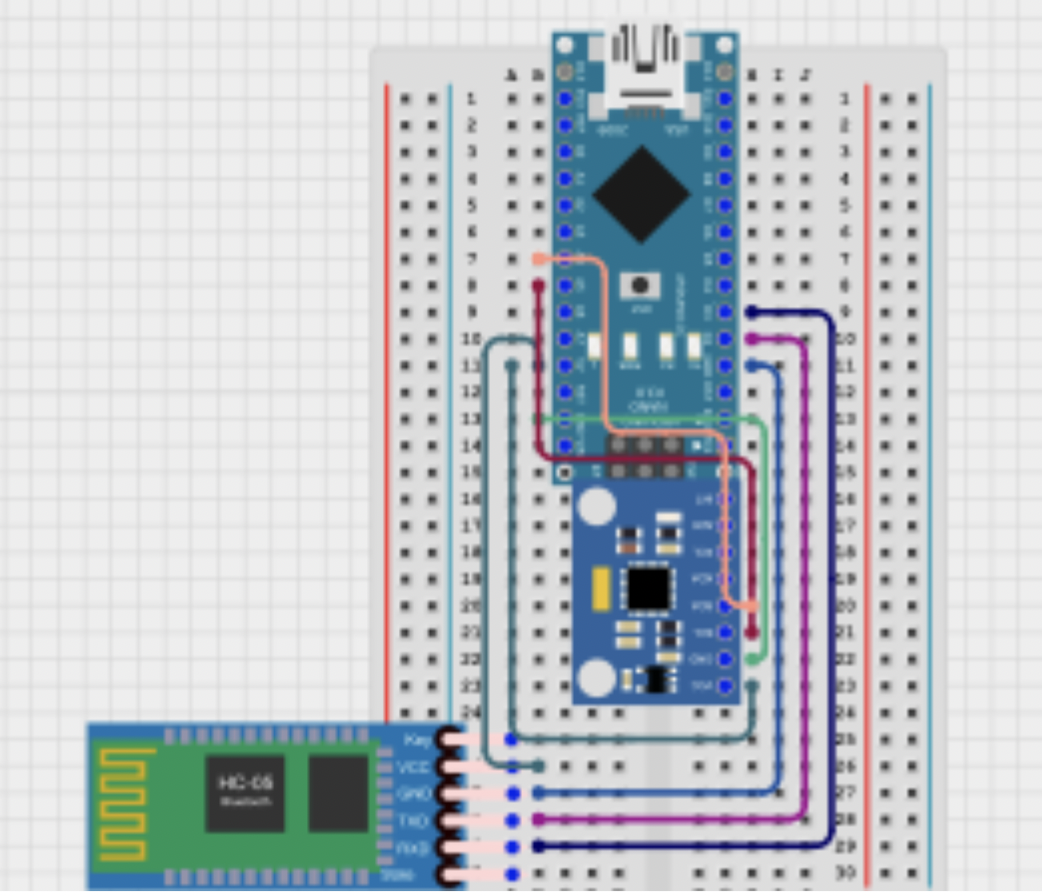

Figure 9: Schematic of Bluetooth Gauntlet after Milestone 2 including Accelerometer, HC05, and Arduino Nano

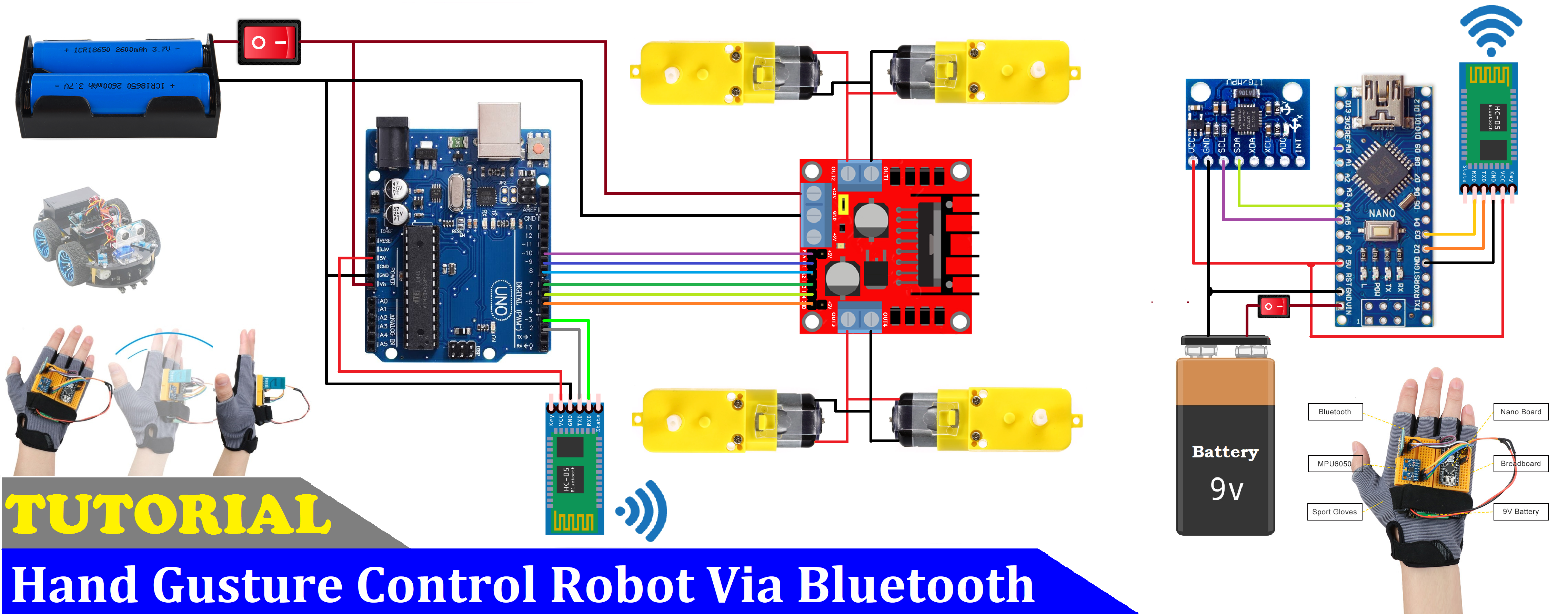

Figure 10: Online Schematic of Entire Project

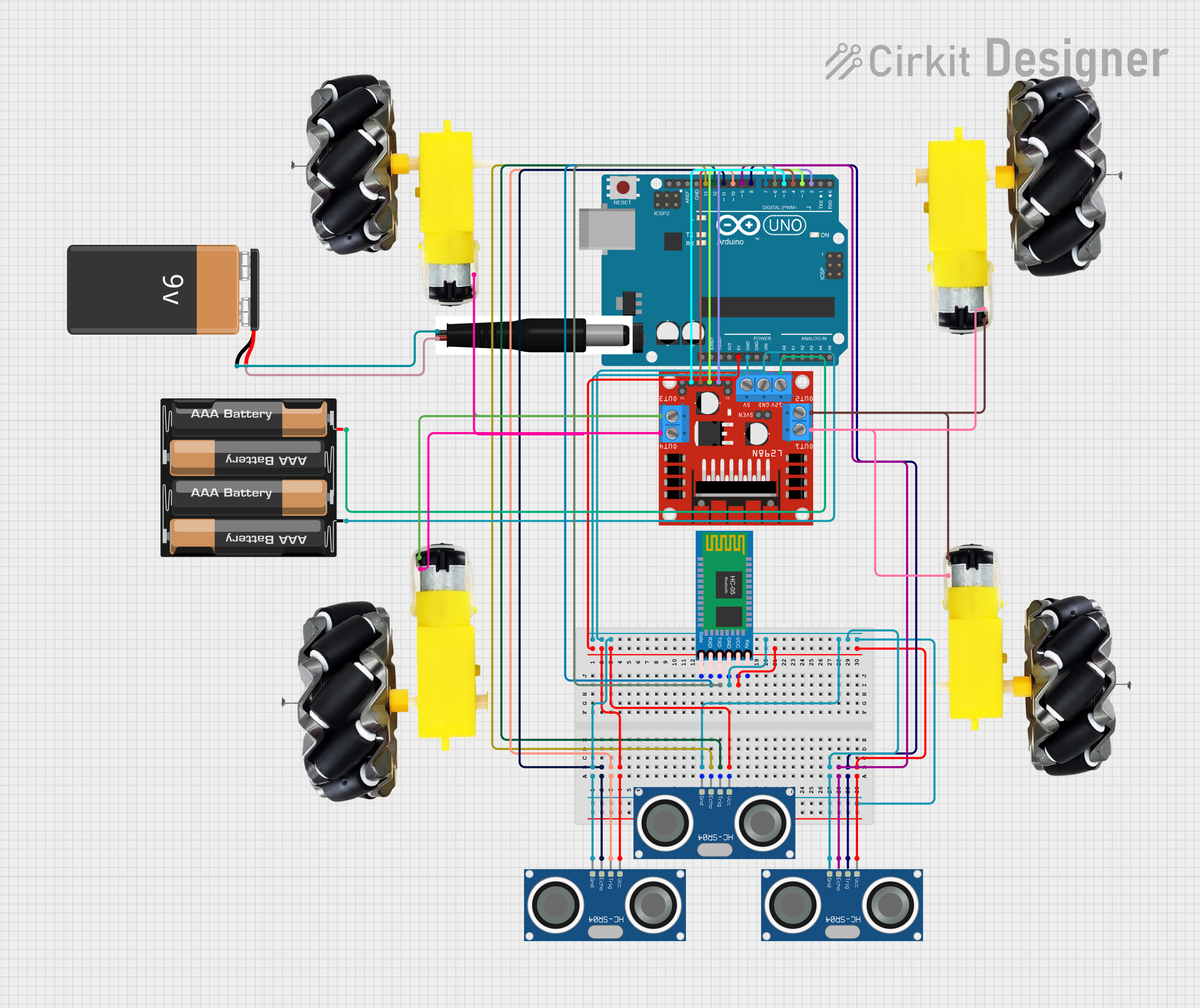

Figure 11: Schematic of Modificated Car Including Ultrasonic Sensors (No Buzzer Included)

Code

Code for Car Modification Milestone (including Buzzer)

#include <SoftwareSerial.h>
#include <Adafruit_MPU6050.h>
#include <Adafruit_Sensor.h>
#include <Wire.h>
SoftwareSerial mySerial(6, 7); //TX, RX pins on Uno

int motor12_pin1 = 2; //setting pins to motors
int motor12_pin2 = 3;
int motor34_pin1 = 4;
int motor34_pin2 = 5;

const int trig1 = 12; //setting pins to ultrasonic sensors
const int echo1 = 13;
const int trig2 = 8;
const int echo2 = 9;
const int trig3 = 10;
const int echo3 = 11;

const int buzzerPin = A0; // Add buzzer connected to analog pin A0

float distanceInches1; //defines distance values for each ultrasonic sensor
float distanceInches2;
float distanceInches3;

void setup() {
  pinMode(motor12_pin1, OUTPUT);
  pinMode(motor12_pin2, OUTPUT);
  pinMode(motor34_pin1, OUTPUT);
  pinMode(motor34_pin2, OUTPUT);
  Serial.begin(9600); //set baud rate
  mySerial.begin(9600); //set baud rate
  pinMode(trig1, OUTPUT);
  pinMode(echo1, INPUT);
  pinMode(trig2, OUTPUT);
  pinMode(echo2, INPUT);
  pinMode(trig3, OUTPUT);
  pinMode(echo3, INPUT);
  pinMode(buzzerPin, OUTPUT); // Setup buzzer pin as output
}

void forward() { //drive functions
  digitalWrite(motor12_pin1, LOW);
  digitalWrite(motor12_pin2, HIGH);
  digitalWrite(motor34_pin1, LOW);
  digitalWrite(motor34_pin2, HIGH);
}

void backward() {
  digitalWrite(motor12_pin1, HIGH);
  digitalWrite(motor12_pin2, LOW);
  digitalWrite(motor34_pin1, HIGH);
  digitalWrite(motor34_pin2, LOW);
}

void right() {
  digitalWrite(motor12_pin1, LOW);
  digitalWrite(motor12_pin2, HIGH);
  digitalWrite(motor34_pin1, HIGH);
  digitalWrite(motor34_pin2, LOW);
}

void left() {
  digitalWrite(motor12_pin1, HIGH);
  digitalWrite(motor12_pin2, LOW);
  digitalWrite(motor34_pin1, LOW);
  digitalWrite(motor34_pin2, HIGH);
}

void stopMotors() {
  digitalWrite(motor12_pin1, LOW);
  digitalWrite(motor12_pin2, LOW);
  digitalWrite(motor34_pin1, LOW);
  digitalWrite(motor34_pin2, LOW);
}

float getAverageDistance(int trigPin, int echoPin, int numSamples = 5) { //function to find average of previous 5 values
  float total = 0; //total distance of previous 5 readings
  int validReadings = 0; //# of readings

  for (int i = 0; i < numSamples; i++) {
    digitalWrite(trigPin, LOW); //next few lines resets trigpin to make sure it is set correctly
    delayMicroseconds(2);
    digitalWrite(trigPin, HIGH);
    delayMicroseconds(10);
    digitalWrite(trigPin, LOW);

    float duration = pulseIn(echoPin, HIGH, 30000); //function to get duration
    if (duration > 0) {
      total += duration * 0.0067; //duration multiplied by constant to get distance in inches
      validReadings++;
    }
    delay(10); // short delay between samples
  }

  if (validReadings == 0) return 999; // if all readings failed
  return total / validReadings;
}

void loop() {
  distanceInches1 = getAverageDistance(trig1, echo1); //printing data in serial monitor for debugging
  Serial.print("Distance 1: ");
  Serial.println(distanceInches1);

  distanceInches2 = getAverageDistance(trig2, echo2);
  Serial.print("Distance 2: ");
  Serial.println(distanceInches2);

  distanceInches3 = getAverageDistance(trig3, echo3);
  Serial.print("Distance 3: ");
  Serial.println(distanceInches3);

  if (mySerial.available()) { //if data is being sent from the other hc05
    String msg = mySerial.readStringUntil('\n'); //setting the variable msg as the string of accelerometer data
    float ax, ay, az, rx, ry, rz; //defines different variables

    int comma1 = msg.indexOf(','); //finds location of all commas in string so separate variables can be found
    int comma2 = msg.indexOf(',', comma1 + 1);
    int comma3 = msg.indexOf(',', comma2 + 1);
    int comma4 = msg.indexOf(',', comma3 + 1);
    int comma5 = msg.indexOf(',', comma4 + 1);

    ax = msg.substring(0, comma1).toFloat(); //separating variables
    ay = msg.substring(comma1 + 1, comma2).toFloat();
    az = msg.substring(comma2 + 1, comma3).toFloat();
    rx = msg.substring(comma3 + 1, comma4).toFloat();
    ry = msg.substring(comma4 + 1, comma5).toFloat();
    rz = msg.substring(comma5 + 1).toFloat();

    if (ax > 4.7) { // trying to move forward
      if (distanceInches1 > 13 && distanceInches2 > 7 && distanceInches3 > 7) {
        forward();
        digitalWrite(buzzerPin, LOW); // safe to move forward
      } else {
        stopMotors();
        digitalWrite(buzzerPin, HIGH); // blocked path while trying to go forward
      }
    } else {
      digitalWrite(buzzerPin, LOW); // buzzer off unless moving forward into obstacle
      if (ax < -4.7) {
        backward();
      } else if (ay > 4.6) {
        left();
      } else if (ay < -4.6) {
        right();
      } else {
        stopMotors();
      }
    }
  }
}

Final Milestone Code for Controller

#include <SoftwareSerial.h>
#include <Adafruit_MPU6050.h>
#include <Adafruit_Sensor.h>
#include <Wire.h>

SoftwareSerial BT_Serial(2, 3); //TX, RX pins on nano

Adafruit_MPU6050 mpu;

void setup(void) {
  BT_Serial.begin(9600);
  Serial.begin(9600);
  mpu.begin();

  mpu.setAccelerometerRange(MPU6050_RANGE_8_G);
  mpu.setGyroRange(MPU6050_RANGE_500_DEG);
  mpu.setFilterBandwidth(MPU6050_BAND_21_HZ);

  delay(100);
}

void loop() {
  sensors_event_t a, g, temp;
  mpu.getEvent(&a, &g, &temp);
  BT_Serial.print(a.acceleration.x);
  BT_Serial.print(",");
  BT_Serial.print(a.acceleration.y);
  BT_Serial.print(",");
  BT_Serial.print(a.acceleration.z);
  BT_Serial.print(",");
  BT_Serial.print(g.gyro.x);
  BT_Serial.print(",");
  BT_Serial.print(g.gyro.y);
  BT_Serial.print(",");
  BT_Serial.println(g.gyro.z);
  Serial.print(a.acceleration.x); //print code in serial console for debugging
  Serial.print(",");
  Serial.print(a.acceleration.y);
  Serial.print(",");
  Serial.print(a.acceleration.z);
  Serial.print(",");
  Serial.print(g.gyro.x);
  Serial.print(",");
  Serial.print(g.gyro.y);
  Serial.print(",");
  Serial.println(g.gyro.z);

  delay(500);
}

Final Milestone Code for Car

#include <SoftwareSerial.h>
#include <Adafruit_MPU6050.h>
#include <Adafruit_Sensor.h>
#include <Wire.h>
SoftwareSerial mySerial(6, 7); //TX, RX pins on Uno

int motor12_pin1 = 2; //setting pins to motors
int motor12_pin2 = 3;
int motor34_pin1 = 4;
int motor34_pin2 = 5;

void setup() {
  pinMode(motor12_pin1, OUTPUT);
  pinMode(motor12_pin2, OUTPUT);
  pinMode(motor34_pin1, OUTPUT);
  pinMode(motor34_pin2, OUTPUT);
  Serial.begin(9600); //sets baud rate
  mySerial.begin(9600); //sets baud rate
}

void forward() {
  digitalWrite(motor12_pin1, LOW);
  digitalWrite(motor12_pin2, HIGH);
  digitalWrite(motor34_pin1, LOW);
  digitalWrite(motor34_pin2, HIGH);
}

void backward() {
  digitalWrite(motor12_pin1, HIGH);
  digitalWrite(motor12_pin2, LOW);
  digitalWrite(motor34_pin1, HIGH);
  digitalWrite(motor34_pin2, LOW);
}

void right() {
  digitalWrite(motor12_pin1, LOW);
  digitalWrite(motor12_pin2, HIGH);
  digitalWrite(motor34_pin1, HIGH);
  digitalWrite(motor34_pin2, LOW);
}

void left() {
  digitalWrite(motor12_pin1, HIGH);
  digitalWrite(motor12_pin2, LOW);
  digitalWrite(motor34_pin1, LOW);
  digitalWrite(motor34_pin2, HIGH);
}

void stopMotors() {
  digitalWrite(motor12_pin1, LOW);
  digitalWrite(motor12_pin2, LOW);
  digitalWrite(motor34_pin1, LOW);
  digitalWrite(motor34_pin2, LOW);
}

void loop() {
  if (mySerial.available()) { //if data is available to be read
    String msg = mySerial.readStringUntil('\n'); //set a variable as the line of data
    //Serial.println(msg); //print data in serial monitor
    float ax, ay, az, rx, ry, rz; //sets 6 variables as float
    //finds position of commas
    int comma1 = msg.indexOf(','); //looks for index of the first comma
    int comma2 = msg.indexOf(',', comma1 + 1); //comma1 + 1 tells it to start searching one position after comma1
    int comma3 = msg.indexOf(',', comma2 + 1); //same as above
    int comma4 = msg.indexOf(',', comma3 + 1); //same as above
    int comma5 = msg.indexOf(',', comma4 + 1); //same as above
    ax = msg.substring(0, comma1).toFloat(); //sets variables as floats instead of strings
    ay = msg.substring(comma1 + 1, comma2).toFloat();
    az = msg.substring(comma2 + 1, comma3).toFloat();
    rx = msg.substring(comma3 + 1, comma4).toFloat();
    ry = msg.substring(comma4 + 1, comma5).toFloat();
    rz = msg.substring(comma5 + 1).toFloat();
    Serial.println(ax);
    Serial.println(ay);
    Serial.println(az);
    Serial.println(rx);
    Serial.println(ry);
    Serial.println(rz);
    Serial.println(" ");

    if (ax > 4.7) {
      forward();
    } else if (ax < -4.7) {
      backward();
    } else if (ay > 4.6) {
      left();
    } else if (ay < -4.6) {
      right();
    } else {
      stopMotors();
    }
  }
}

Milestone 2 - Code for Nano (Transmits Accelerometer Data)

#include <SoftwareSerial.h>
#include <Adafruit_MPU6050.h>
#include <Adafruit_Sensor.h>
#include <Wire.h>

SoftwareSerial BT_Serial(2, 3); //TX, RX pins on nano

Adafruit_MPU6050 mpu;

void setup(void) {
  BT_Serial.begin(9600); //sets baud rate
  Serial.begin(9600); //sets baud rate
  mpu.begin();

  mpu.setAccelerometerRange(MPU6050_RANGE_8_G); //setup
  mpu.setGyroRange(MPU6050_RANGE_500_DEG);
  mpu.setFilterBandwidth(MPU6050_BAND_21_HZ);

  delay(100);
}

void loop() {
  sensors_event_t a, g, temp;
  mpu.getEvent(&a, &g, &temp); //get data
  BT_Serial.print(a.acceleration.x); //print data in one line
  BT_Serial.print(",");
  BT_Serial.print(a.acceleration.y);
  BT_Serial.print(",");
  BT_Serial.print(a.acceleration.z);
  BT_Serial.print(",");
  BT_Serial.print(g.gyro.x);
  BT_Serial.print(",");
  BT_Serial.print(g.gyro.y);
  BT_Serial.print(",");
  BT_Serial.println(g.gyro.z);
  Serial.print(a.acceleration.x);
  Serial.print(",");
  Serial.print(a.acceleration.y);
  Serial.print(",");
  Serial.print(a.acceleration.z);
  Serial.print(",");
  Serial.print(g.gyro.x);
  Serial.print(",");
  Serial.print(g.gyro.y);
  Serial.print(",");
  Serial.println(g.gyro.z);

  delay(500); //update every 0.5 seconds
}

Milestone 2 - Code for Uno (Receives Accelerometer Data)

#include <SoftwareSerial.h>

SoftwareSerial mySerial(6, 7); //TX, RX pins on Uno

void setup() {
  Serial.begin(9600); //sets baud rate
  mySerial.begin(9600); //sets baud rate
}

void loop() {
  if (mySerial.available()) { //if data is available to be read
    String msg = mySerial.readStringUntil('\n'); //set a variable as the line of data
    Serial.println(msg); //print data in serial monitor
  }
}

Milestone 1 - Code to Test Motors

int motor1pin1 = 2;
int motor1pin2 = 3;

int motor2pin1 = 4;
int motor2pin2 = 5;

int motor3pin1 = 8;
int motor3pin2 = 9;

int motor4pin1 = 10;
int motor4pin2 = 11;

void setup() {
 pinMode(motor1pin1, OUTPUT);
 pinMode(motor1pin2, OUTPUT);
 pinMode(motor2pin1, OUTPUT);
 pinMode(motor2pin2, OUTPUT);
 pinMode(motor3pin1, OUTPUT);
 pinMode(motor3pin2, OUTPUT);
 pinMode(motor4pin1, OUTPUT);
 pinMode(motor4pin2, OUTPUT);

//code for all motors to spin in the same direction

 digitalWrite(motor1pin1, LOW);
 digitalWrite(motor1pin2, HIGH);
 digitalWrite(motor2pin1, LOW);
 digitalWrite(motor2pin2, HIGH);
 digitalWrite(motor3pin1, LOW);
 digitalWrite(motor3pin2, HIGH);
 digitalWrite(motor4pin1, LOW);
 digitalWrite(motor4pin2, HIGH);

 delay(5000); //spin for 5 seconds

 digitalWrite(motor1pin1, LOW);
 digitalWrite(motor1pin2, LOW);
 digitalWrite(motor2pin1, LOW);
 digitalWrite(motor2pin2, LOW);
 digitalWrite(motor3pin1, LOW);
 digitalWrite(motor3pin2, LOW);
 digitalWrite(motor4pin1, LOW);
 digitalWrite(motor4pin2, LOW); //code to stop motors
}

Starter Project - 6/17/25

Summary

For the starter project, I chose the RGB Slider. The RGB Slider features three sliders, one that corresponds for the Red, Green, and Blue values of an LED light. It is powered through a USB-C port. Finally, there’s the LED light that ultimately displays the colors. This project also allows for colors to mix (when the red and blue sliders are slid to the maximum, purple light is shown).

Challenges

Although this project was straightforward, I encountered challenges while working on this project. The first challenge I met was after I had soldered on all the components. I plugged the power in and played around with the sliders, but the LED light wouldn’t turn on. I asked my instructor and it turns out that I had soldered the LED light on the wrong way. So I had to de-solder the LED light using a desoldering pump. After this was finished, I tested with the power on again. The red and blue sliders worked perfectly, but the green slider didn’t work at all. My instructor thought that the plastic board had been faulty, so I restarted from scratch. After doing the entire process again, all three sliders finally worked, resulting in an exciting RGB Slider starter project.

Next Steps

Next, I will be starting my intensive project, which is the Gesture Controlled Robot.

Bill of Materials

Part	Note	Price	Link
Arduino Uno R3	Acts as core receiver and processor	$27.60	Link
Arduino Nano	Collects sensor data and transmits sensor data via bluetooth	$24.99	Link
Breadboard 2x	Provides temporary platform for connections without having to solder	$5.99 each	Link
L298N Motor Driver	Controls direction and speed of motors by directions from arduino uno	$6.98 for 2 motor drivers	Link
HC05 Bluetooth Module 2x	Enables wireless communication between arduino uno and nano	$9.99 for each	Link
MPU-6050	Measures acceleration and rotational acceleration data	$6.99	Link
Jumper Wires 120x	Used for simple and easy to disconnect connections	$6.98 for 120 wires	Link
DC Motors 4x + Rubber Wheels 4x	Necessities for drivetrain to work	$9.99 for everything	Link
9V Battery	Power source	$12.06 for 8 (1.50 for one)	Link
1.5 Battery 5x	Power source	$4.97 for 4 (1.24 for one)	Link
Ultrasonic Sensor 3x	Detects Distance	$8.99 for 5 ($1.80 for one)	Link
Active Buzzer	Buzzes when Object is within Range	$7.99 for 10 ($0.80 for one)	Link
